Potted Outdoor Drivers.
Driver Components Powered By

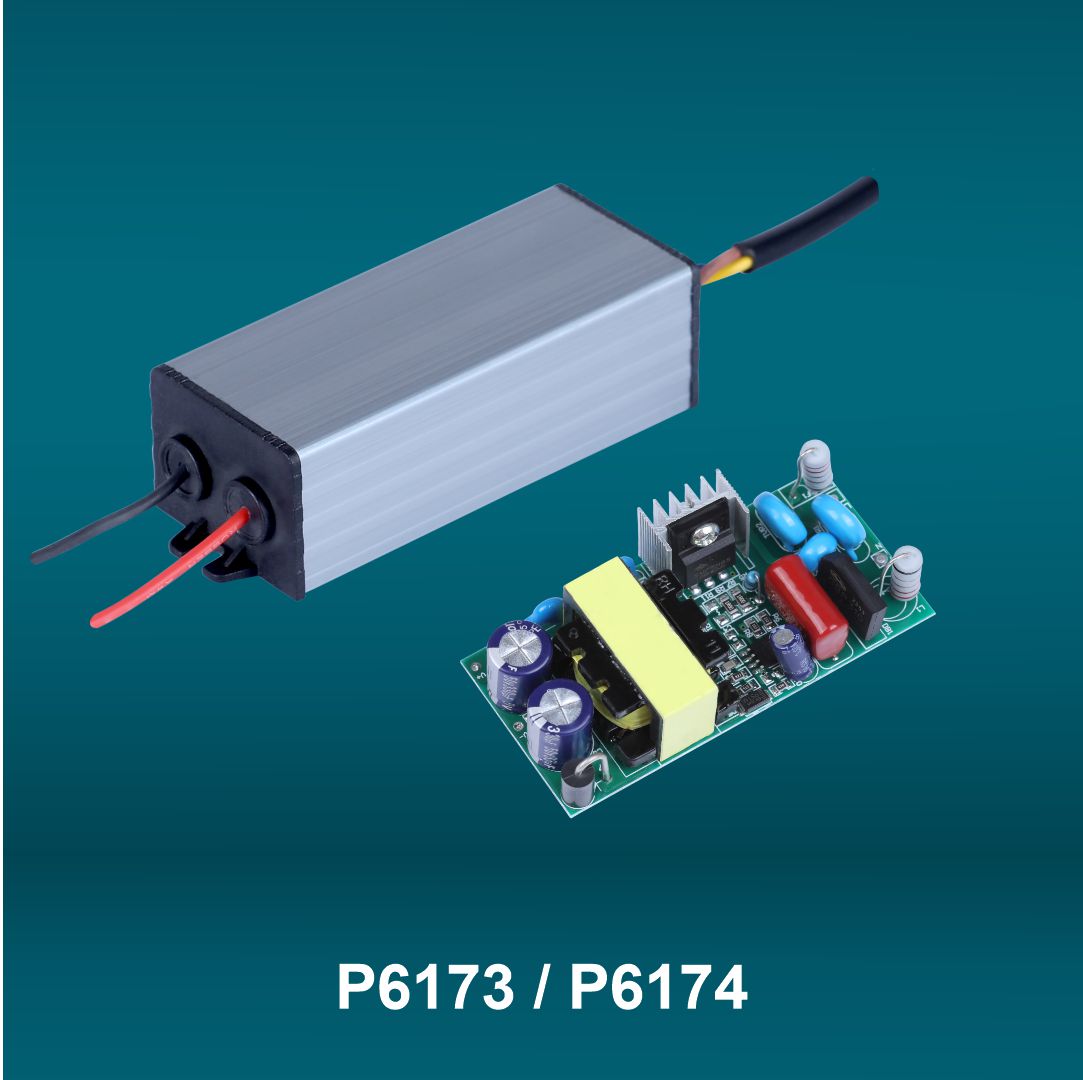

50W EE28 Waterproof Isolated Driver
Driver Details:
- Wattage – 50W EE28 (P6173 / P6174)
- Input Voltage – 100V - 320V AC 50-60Hz
- Output Voltage – 28V - 35V / 48V - 66V
- Output Current – 1500mA / 750mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 6KV Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 70*33*22mm / 81*37*27mm
- Application – Indoor / Outdoor LED Lighting
Download Catalouge
50W EE22*13 Waterproof Isolated Driver
Driver Details:
- Wattage – 50W EE22*13 (P6175 / P6176)
- Input Voltage – 100V - 320V AC 50-60Hz
- Output Voltage – 28V - 35V / 48V - 66V
- Output Current – 1500mA / 750mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 4V Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 64*27*18mm / 78*36*24mm
- Application – Indoor / Outdoor LED Lighting
Download Catalouge
Silicon Potting Material
Product Description：
- Two Component silicone addition type potting compound.
- Low Viscosity, good fluidity, easy to operate.
- Glue can store a long time after mixing at room temperature,It can be cured quickly under heating condition, especially for automatic production line.
- Good temperature resistance, it can maintain rubber elasticity in a wide temperature range (-50～200℃）after cured.
- Good termal conductivity, excellent insulation performance.
- The curing process does not shrink, has better waterproof and moisture resistance and anti-aging performance.
- Comply with EU ROHS directive requirements.
Download Catalouge
