LED Tube Light SKD
Driver Components Powered By

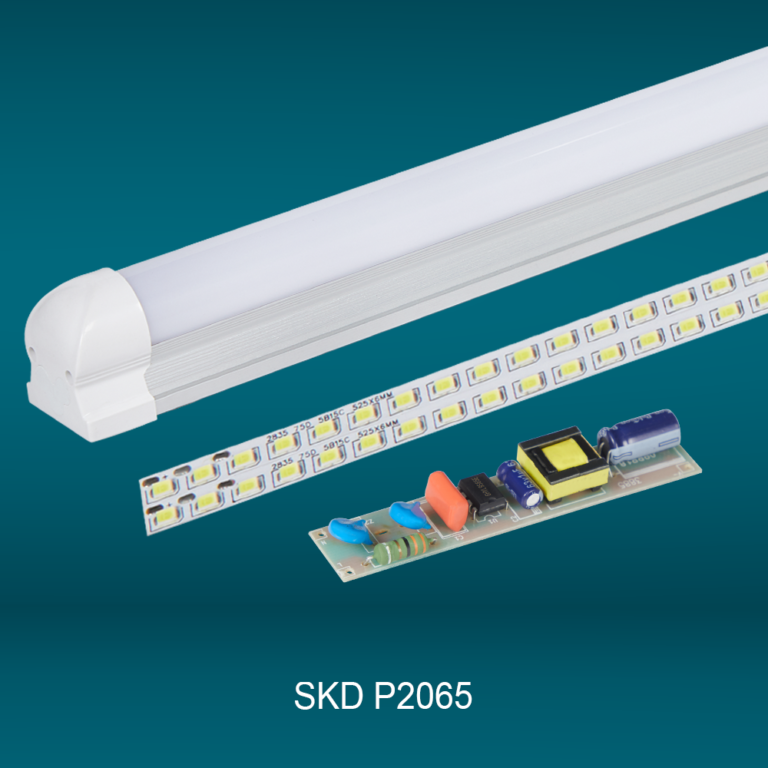

Wt8 145gms 1ft (P2065)
Type – 1ft Wall T8 / Batten T8 SKD (P2065)
Housing Details:
| Material | Aluminum + PC |
| Length | 300mm |
| Per Set | Base + PC Cover + Side Caps + Small Caps + Clips + Screw + Side Cap Screws |
LED on PCB Details:
| Material | MC and FR |
| Size(mm) | 295*9.5 (2pcs) |
| Combination | 12s2p(24LED) |
Driver Details:
| Wattage | 10w |
| Output Current | 240mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge

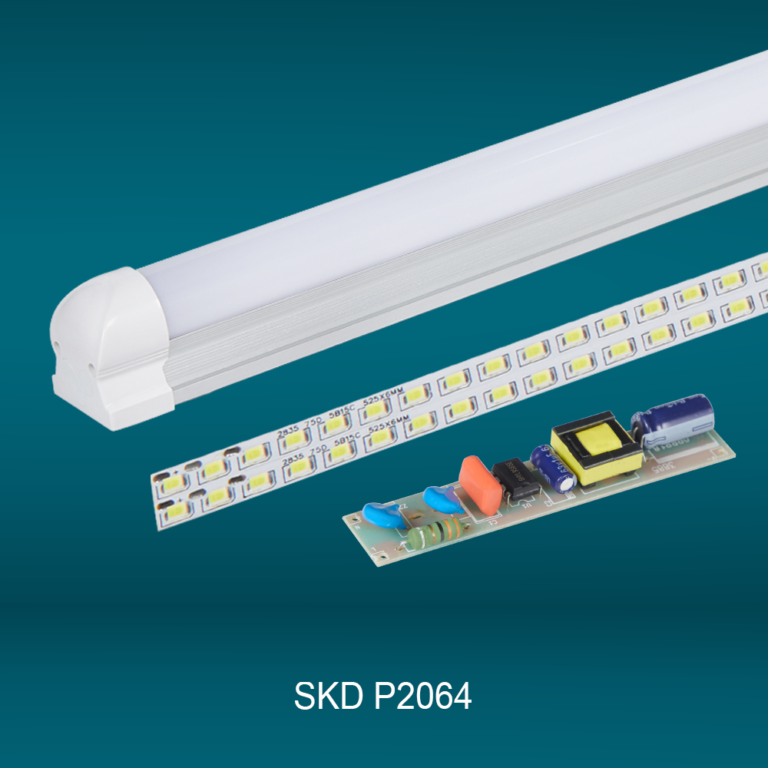

Wt8 145gms 2ft (P2064)
Type – 2ft Wall T8 / Batten T8 SKD (P2064)
Housing Details:
| Material | Aluminum + PC |
| Length | 600mm |
| Per Set | Base + PC Cover + Side Caps + Small Caps + Clips + Screw + Side Cap Screws |
LED on PCB Details:
| Material | MC and FR |
| Size(mm) | 585*9.5 (2pcs) |
| Combination | 24s2p(48LED) |
Driver Details:
| Wattage | 20w |
| Output Current | 240mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge

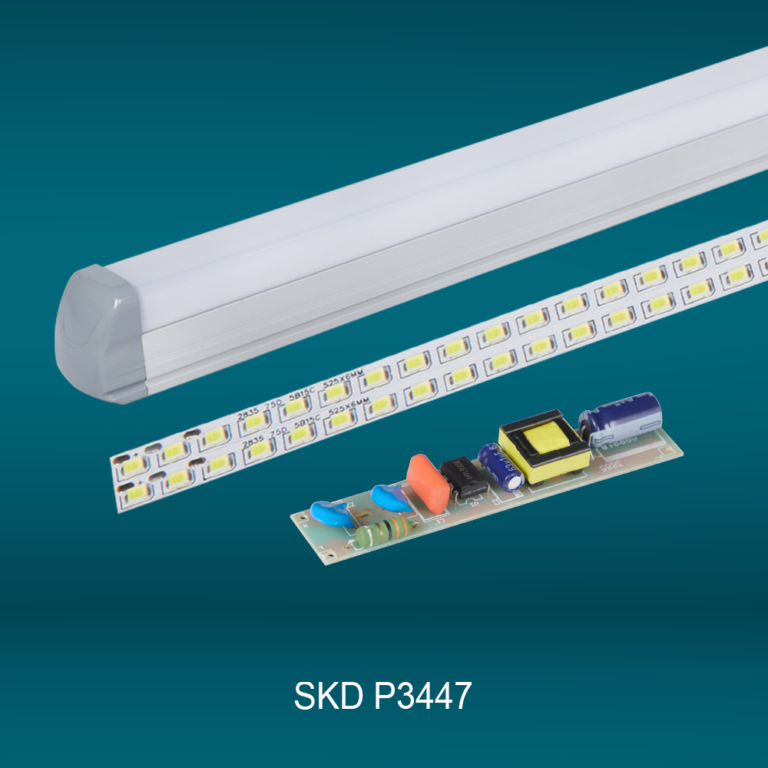

Wt8 Square 2ft (P3447)
Type – 2ft T8 Square Powder Coated SKD (P3447)
Housing Details:
| Material | Aluminum + PC |
| Length | 600mm |
| Per Set | Base + PC Cover + Side Caps + Clips + Screws |
LED on PCB Details:
| Material | MC |
| Size(mm) | 585*9.5 |
| Combination | 25s4p(100LED) |
Driver Details:
| Wattage | 20w |
| Output Current | 240mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge

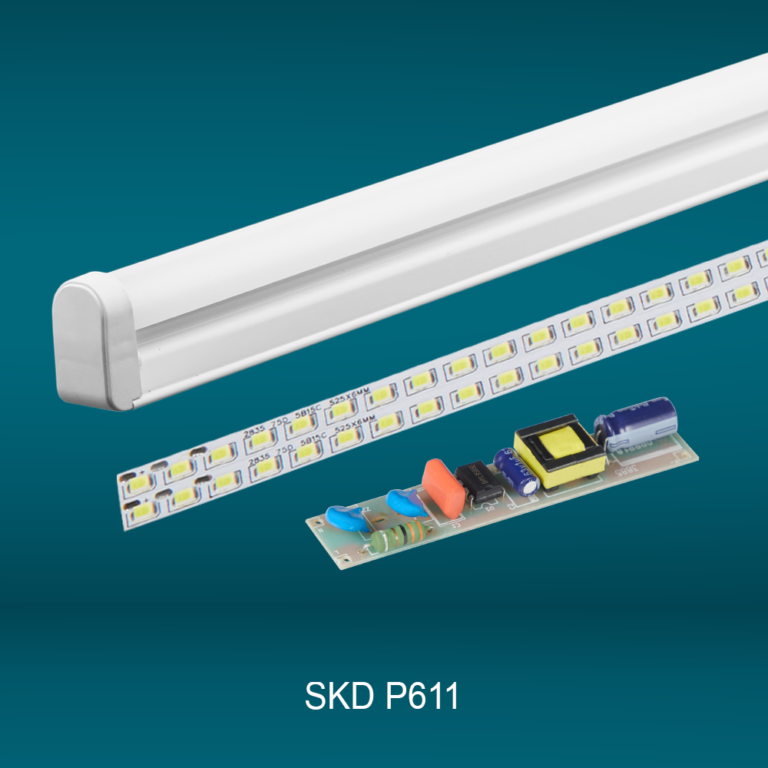

T5 Round Plastic 4ft (P611)
Type – 4ft T5 Round Plastic SKD (P611)
Housing Details:
| Material | Polycarbonate(PC) |
| Length | 1200mm |
| Per Set | PC Base + PC Cover + Side Caps + Clips + Screws |
LED on PCB Details:
| Material | MC and FR |
| Size(mm) | 1170*8 |
| Combination | 25s4p(100LED) |
Driver Details:
| Wattage | 20w |
| Output Current | 240mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge

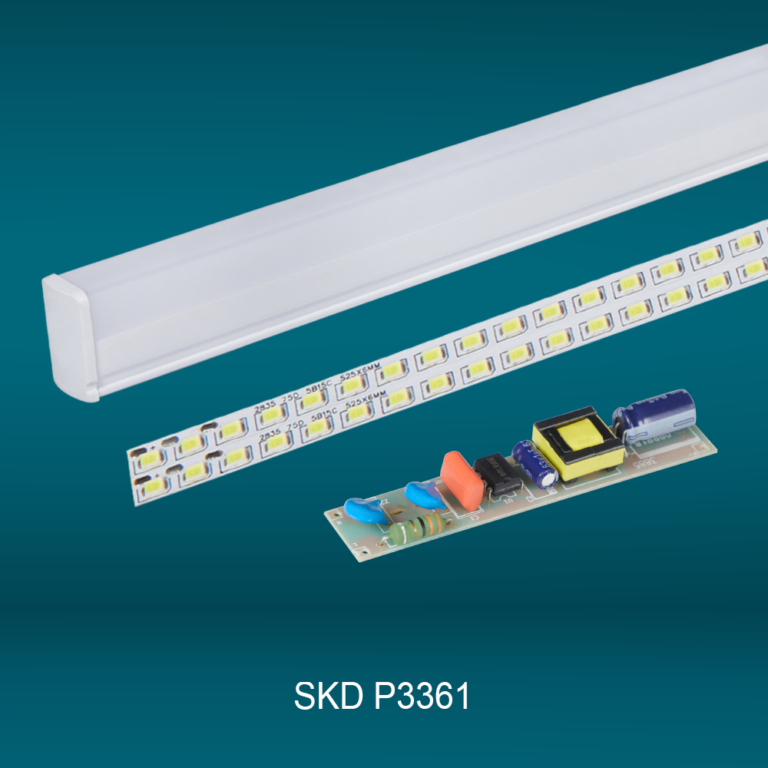

T5 Square Plastic 5.7mm 1ft (P3361)
Type – 1ft T5 Square Plastic SKD (P3361)
Housing Details:
| Material | Polycarbonate(PC) |
| Length | 300mm |
| Per Set | PC Base + PC Cover + Side Caps + Clips + Screws |
LED on PCB Details:
| Material | MC and FR |
| Size(mm) | 295*5.7 |
| Combination | 12s2p(24LED) |
Driver Details:
| Wattage | 5w |
| Output Current | 120mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge
T5 Square Plastic 5.7mm 2ft (P697)
Type – 2ft T5 Square Plastic SKD (P697)
Housing Details:
| Material | Polycarbonate(PC) |
| Length | 600mm |
| Per Set | PC Base + PC Cover + Side Caps + Clips + Screws |
LED on PCB Details:
| Material | MC and FR |
| Size(mm) | 570*5.7 |
| Combination | 24s2p(48LED) |
Driver Details:
| Wattage | 10w |
| Output Current | 120mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge
T5 Square Plastic 5.7mm 4ft (P610)
Type – 4ft T5 Square Plastic SKD (P610)
Housing Details:
| Material | Polycarbonate(PC) |
| Length | 1200mm |
| Per Set | PC Base + PC Cover + Side Caps + Clips + Screws |
LED on PCB Details:
| Material | MC and FR |
| Size(mm) | 1170*5.7 |
| Combination | 25s2p(100LED) |
Driver Details:
| Wattage | 20w |
| Output Current | 240mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge

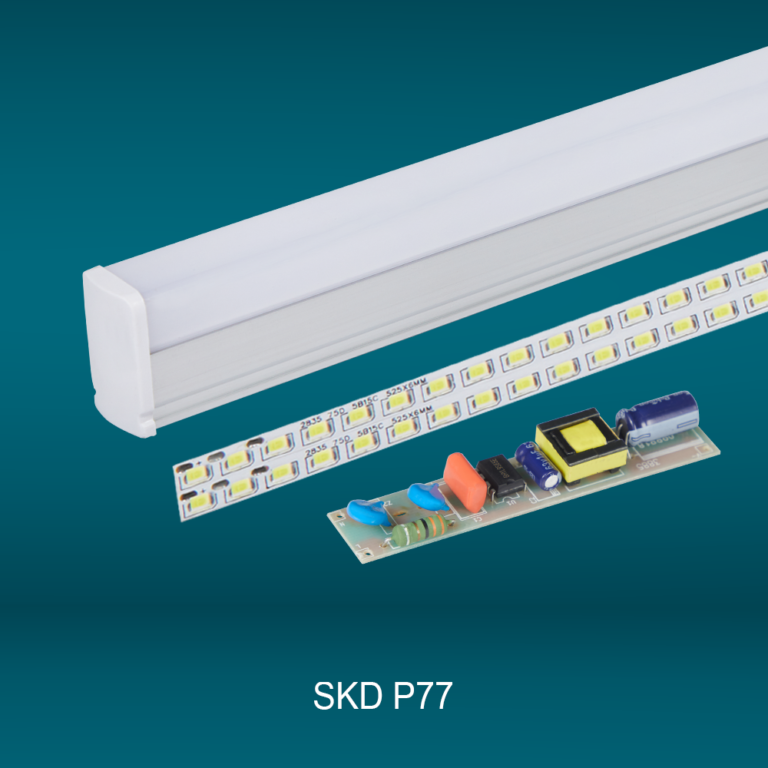

T5 Square 35gms 2feet (P77)
Type – 2ft T5 Square SKD (P77)
Housing Details:
| Material | Aluminum + PC |
| Length | 600mm |
| Per Set | Base + PC Cover + Side Caps + Clips + Screws |
LED on PCB Details:
| Material | MC and FR |
| Size(mm) | 585*9.5 |
| Combination | 25s2p(50LED) |
Driver Details:
| Wattage | 10w |
| Output Current | 120mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge
T5 Round 35gms 2feet (P68/69)
Type – 2ft T5 Square SKD (P77)
Housing Details:
| Material | Aluminum + PC |
| Length | 600mm |
| Per Set | Base + PC Cover + Side Caps + Clips + Screw |
LED on PCB Details:
| Material | MC and FR |
| Size(mm) | 585*9.5 |
| Combination | 25s2p(50LED) |
Driver Details:
| Wattage | 10w |
| Output Current | 120mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge
T5 Blue Cap Powder Coated (P2201)
Type – 2ft T5 Round SKD (P68 / P69)
Housing Details:
| Material | Aluminum + PC |
| Length | 1200mm |
| Per Set | Base + PC Cover + Side Caps + Clips + Screw |
LED on PCB Details:
| Material | MC and FR |
| Size(mm) | 1170*9.5 |
| Combination | 25s4p(100LED) or 24s5p(120LED) |
Driver Details:
| Wattage | 20w or 24w |
| Output Current | 240mA or 300mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge

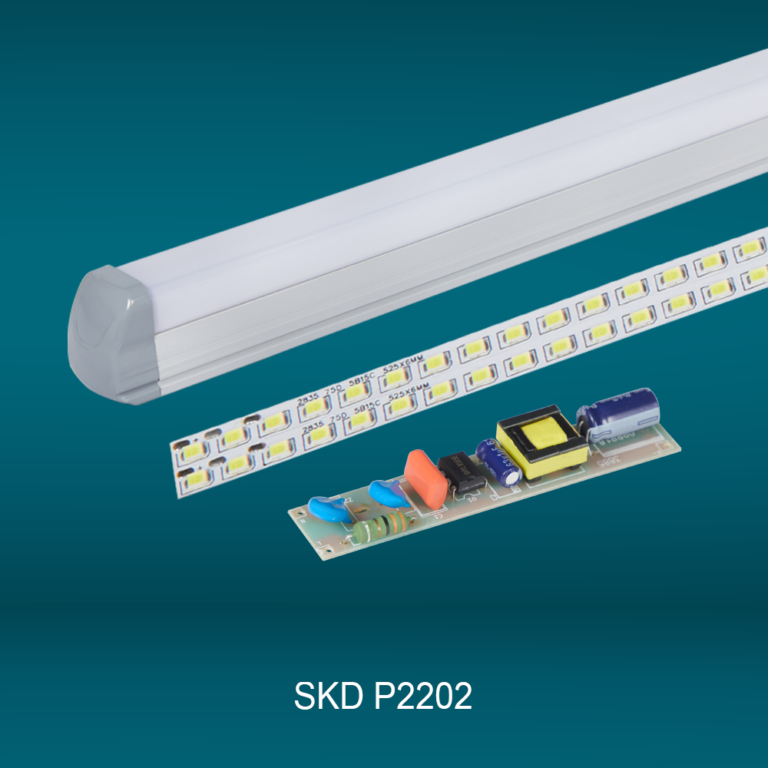

Wt8 Square 4ft (P2202)
Type – 4ft T8 Square Powder Coated SKD (P2202)
Housing Details:
| Material | Aluminum + PC |
| Length | 1175 mm |
| Per Set | Base + PC Cover + Side Caps + Clips + Screws |
LED on PCB Details:
| Material | MC |
| Size(mm) | 1170*9.5 |
| Combination | 25s8p(200LED) |
Driver Details:
| Wattage | 36w |
| Output Current | 450mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge
Wt8 145gms 4feet(36w) (92/93)
Type – 4ft Wall T8 / Batten T8 SKD (P92 / P93)
Housing Details:
| Material | Aluminum + PC |
| Length | 1200mm |
| Per Set | Base + PC Cover + Side Caps + Small Caps + Clips + Screw + Side Cap Screws |
LED on PCB Details:
| Material | MC and FR |
| Size(mm) | 1170*9.5 (2pcs) |
| Combination | 25s4p(100LED) |
Driver Details:
| Wattage | 36w |
| Output Current | 450mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge

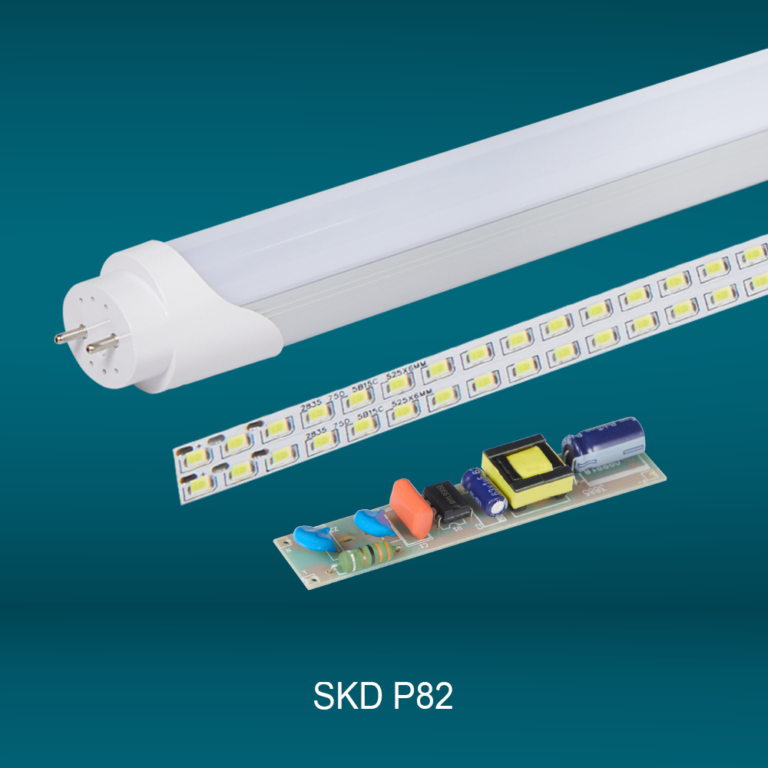

T8 Retro 40gms 2feet (P82)
Type – 2ft T8 Retro SKD (P82)
Housing Details:
| Material | Aluminum + PC |
| Length | 585mm |
| Per Set | Base + PC Cover + Side Caps + Pin Protector |
LED on PCB Details:
| Material | MC |
| Size(mm) | 563*9.5 |
| Combination | 12s4p(48LED) |
Driver Details:
| Wattage | 10w |
| Output Current | 240mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge

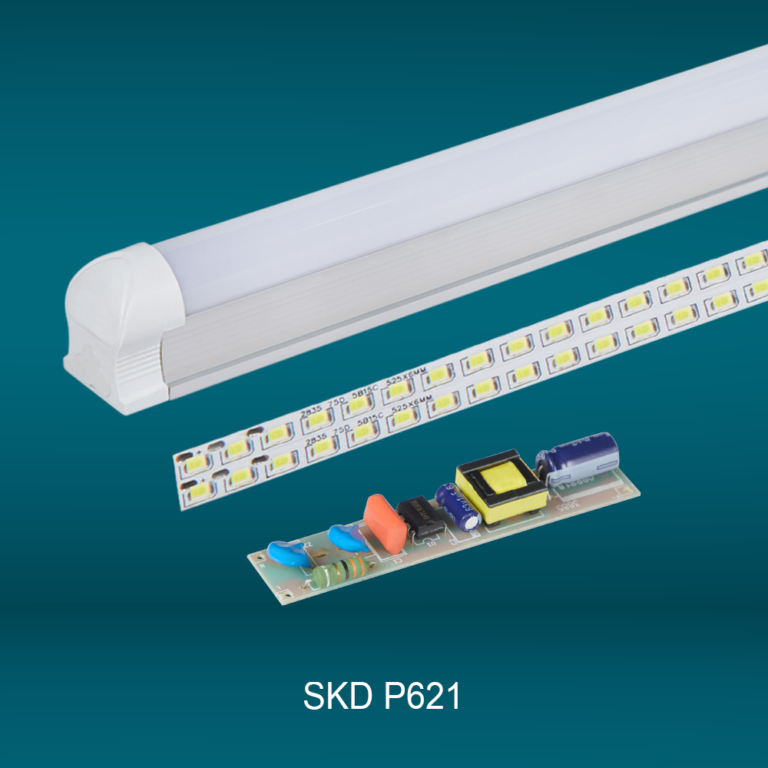

Wt8 110gms 4feet(P621)
Type(20w/24w) – 4ft Wall T8 SKD (P621)
Housing Details:
| Material | Aluminum + PC |
| Length | 1200mm |
| Per Set | Base + PC Cover + Side Caps + Clips + Screws |
LED on PCB Details:
| Material | MC and FR |
| Size(mm) | 1170*9.5 |
| Combination | 25s4p(100LED) or 24s5p(120LED) |
Driver Details:
| Wattage | 20w or 24w |
| Output Current | 240mA or 300mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge

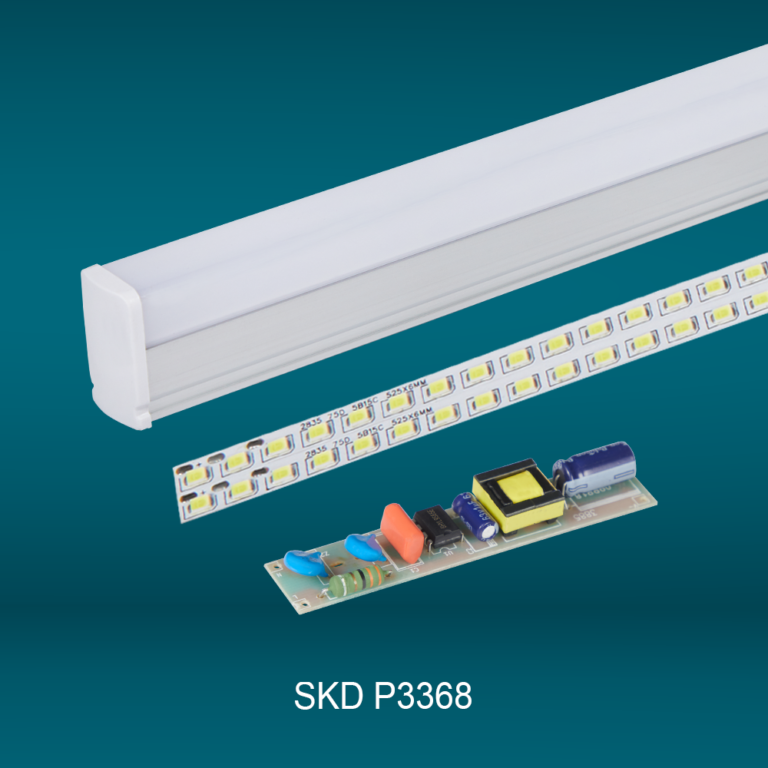

T5 Square 90gms 4feet (P3368)
Type(20w/24w) – 4ft T5 Square SKD (P3368)
Housing Details:
| Material | Aluminum + PC |
| Length | 1200mm |
| Per Set | Base + PC Cover + Side Caps + Clips + Screws |
LED on PCB Details:
| Material | MC and FR |
| Size(mm) | 1170*9.5 |
| Combination | 25s4p(100LED) or 24s5p(120LED) |
Driver Details:
| Wattage | 20w or 24w |
| Output Current | 240mA or 300mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge
T5 Round 85gms 4feet (P2080 / P3367)
Type(20w/24w) – 4ft T5 Round SKD (P2080 / P3367)
Housing Details:
| Material | Aluminum + PC |
| Length | 1200mm |
| Per Set | Base + PC Cover + Side Caps + Clips + Screws + (Wire Connector + Middle Connector)* |
LED on PCB Details:
| Material | MC and FR |
| Size(mm) | 1170*9.5 |
| Combination | 25s4p(100LED) or 24s5p(120LED) |
Driver Details:
| Wattage | 20w or 24w |
| Output Current | 240mA or 300mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge

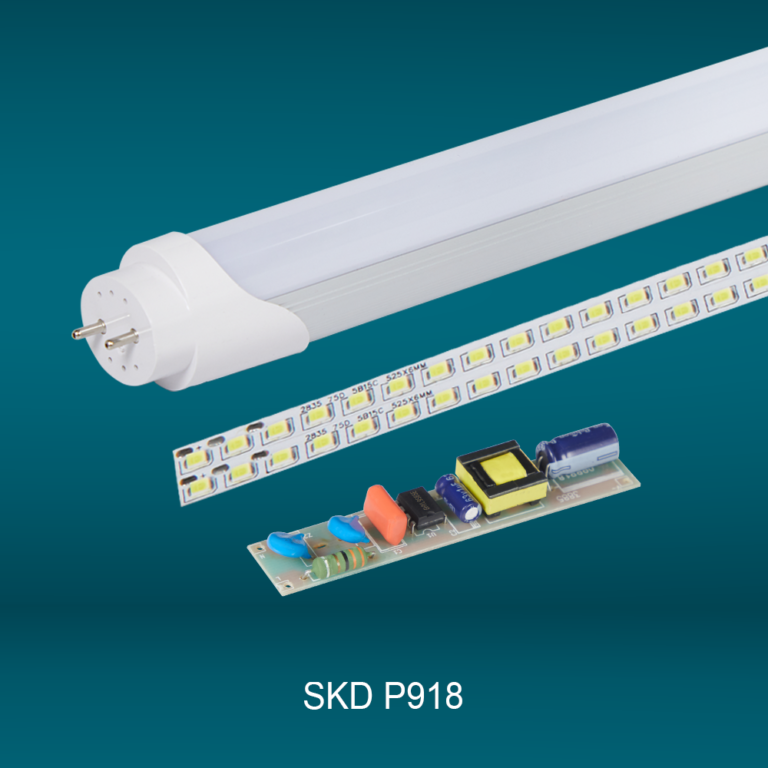

T8 Retro 90gms 4feet (P918)
Type – 4ft T8 Retro SKD (P918)
Housing Details:
| Material | Aluminum + PC |
| Length | 1200mm |
| Per Set | Base + PC Cover + Side Caps + Pin Protector |
LED on PCB Details:
| Material | MC and FR |
| Size(mm) | 1170*9.5 |
| Combination | 25s4p(100LED) |
Driver Details:
| Wattage | 18w or 20w |
| Output Current | 215mA or 240mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge

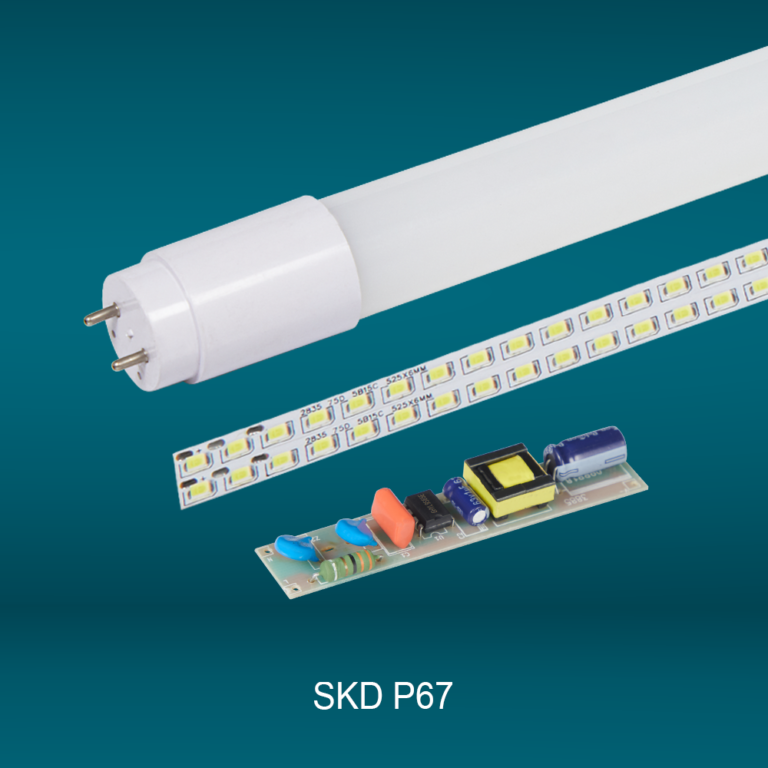

T8 Retro 110gms 4feet (P67)
Type – 4ft T8 Retro Plastic SKD (P67)
Housing Details:
| Material | Polycarbonate(PC) |
| Length | 1185mm |
| Per Set | Base + PC Cover + Side Caps + Pin Protector |
LED on PCB Details:
| Material | MC and FR |
| Size(mm) | 1170*9.5 |
| Combination | 25s4p(100LED) |
Driver Details:
| Wattage | 18w |
| Output Current | 215mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge
PLL 90gms 395mm (P1925)
Type – PLL SKD (P1925)
Housing Details:
| Material | Aluminum + PC |
| Length | 395mm |
| Per Set | Base + PC Cover + Side Caps + Screws |
LED on PCB Details:
| Material | MC |
| Size(mm) | 391*26 |
| Combination | 25s4p(100LED) |
Driver Details:
| Wattage | 18w |
| Output Current | 215mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge

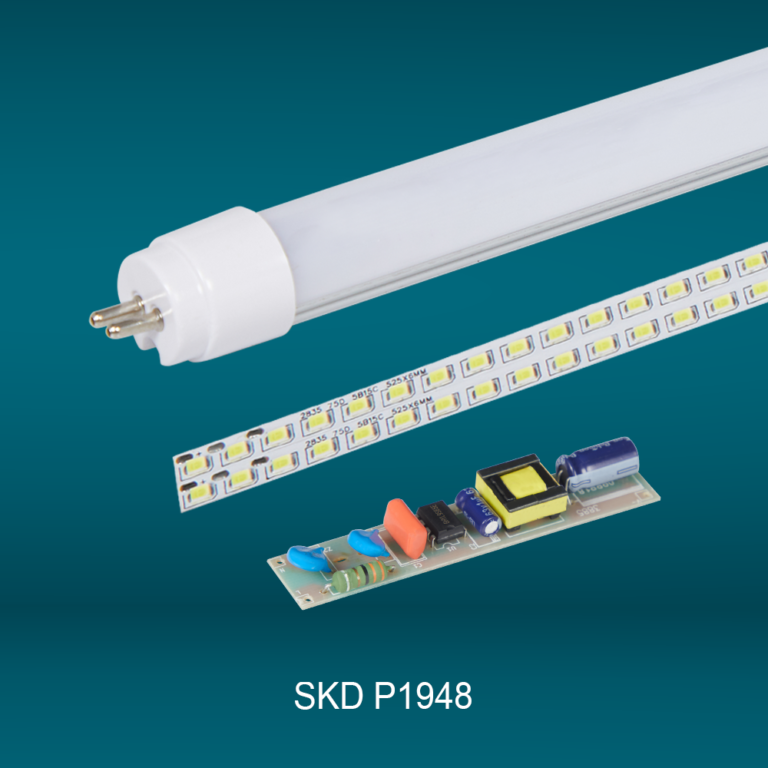

T5 Retro 100gms 4feet (P1948)
Type – 4ft T5 Retro SKD (P1948)
Housing Details:
| Material | Aluminum + PC |
| Length | 1162mm |
| Per Set | Base + PC Cover + Side Caps + Screws |
LED on PCB Details:
| Material | MC |
| Size(mm) | 1125*9.5 |
| Combination | 26s4p(104LED) |
Driver Details:
| Wattage | 18w or 20w |
| Output Current | 215mA or 240mA |
| Efficiency ≥ 88% | PFC > 0.95 |
| Surge Protection upto 3.5kv |
Download Catalouge
