Switch Mode Power Supply (SMPS)
Driver Components Powered By
24W Switch Mode Power Supply Driver
Driver Details:
- Wattage – 24W (P6479)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 12V
- Output Current – 2Amp
- Efficiency ≥ 80%
- PFC > 0.6
- Surge Protection – Upto 3.5KV
- High Voltage – 400V Sustainable
- Features : Constant Voltage Driver, Short Circuit Protection, Open Circuit, Cooling by free air Convection.
- Ingress Protection – IP20
- Working Humidity – 20%-90% R.H.
- Length(L*B*H*) – 105*30*10mm
- Application – Profile Light, Strip Light, Rope Light, Hanging Light.
Download Catalouge
60W Switch Mode Power Supply Driver
Driver Details:
- Wattage – 60W (P6481)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 12V
- Output Current – 5Amp
- Efficiency ≥ 80%
- PFC > 0.6
- Surge Protection – Upto 3.5KV
- High Voltage – 400V Sustainable
- Features : Constant Voltage Driver, Short Circuit Protection, Open Circuit, Cooling by free air Convection.
- Ingress Protection – IP20
- Working Humidity – 20%-90% R.H.
- Length(L*B*H*) – 100*30*17.5mm
- Application – Profile Light, Strip Light, Rope Light, Hanging Light.
Download Catalouge
100W Switch Mode Power Supply Driver
Driver Details:
- Wattage – 100W (P6482)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 12V
- Output Current – 8.3Amp
- Efficiency ≥ 80%
- PFC > 0.6
- Surge Protection – Upto 3.5KV
- High Voltage – 400V Sustainable
- Features : Constant Voltage Driver, Short Circuit Protection, Open Circuit, Cooling by free air Convection.
- Ingress Protection – IP20
- Working Humidity – 20%-90% R.H.
- Length(L*B*H*) – 140*30*17.2mm
- Application – Profile Light, Strip Light, Rope Light, Hanging Light.
Download Catalouge
200W Switch Mode Power Supply Driver
Driver Details:
- Wattage – 200W (P6483)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 12V
- Output Current – 16.6Amp
- Efficiency ≥ 80%
- PFC > 0.6
- Surge Protection – Upto 3.5KV
- High Voltage – 400V Sustainable
- Features : Constant Voltage Driver, Short Circuit Protection, Open Circuit, Cooling by free air Convection.
- Ingress Protection – IP20
- Working Humidity – 20%-90% R.H.
- Length(L*B*H*) – 160*31*19.6mm
- Application – Profile Light, Strip Light, Rope Light, Hanging Light.
Download Catalouge

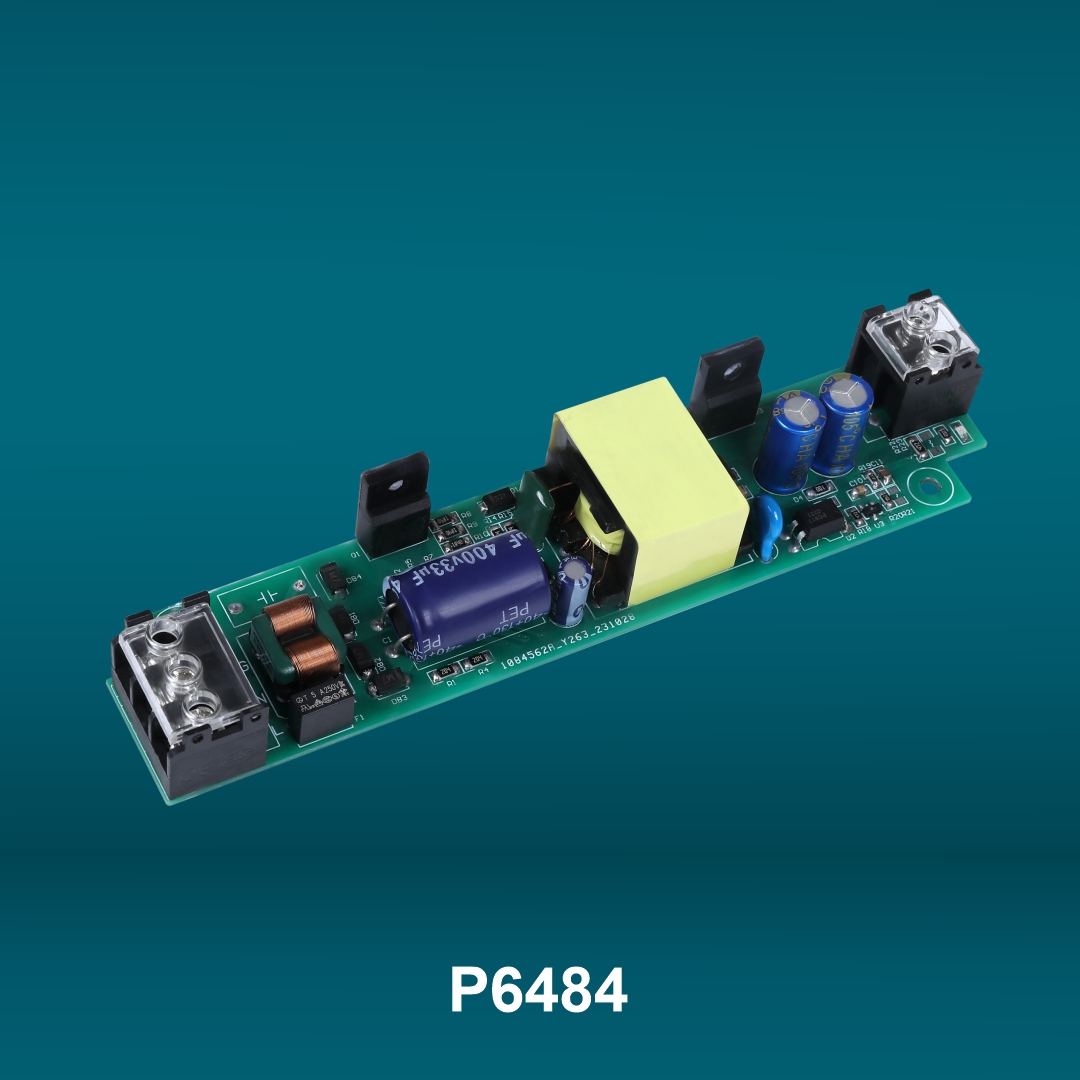

300W Switch Mode Power Supply Driver
Driver Details:
- Wattage – 300W (P6484)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 12V
- Output Current – 25Amp
- Efficiency ≥ 80%
- PFC > 0.6
- Surge Protection – Upto 3.5KV
- High Voltage – 400V Sustainable
- Features : Constant Voltage Driver, Short Circuit Protection, Open Circuit, Cooling by free air Convection.
- Ingress Protection – IP20
- Working Humidity – 20%-90% R.H.
- Length(L*B*H*) – 206*30.28*18.90mm
- Application – Profile Light, Strip Light, Rope Light, Hanging Light.
Download Catalouge
400W Switch Mode Power Supply Driver
Driver Details:
- Wattage – 400W (P6485)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 12V
- Output Current – 33.3Amp
- Efficiency ≥ 80%
- PFC > 0.6
- Surge Protection – Upto 3.5KV
- High Voltage – 400V Sustainable
- Features : Constant Voltage Driver, Short Circuit Protection, Open Circuit, Cooling by free air Convection.
- Ingress Protection – IP20
- Working Humidity – 20%-90% R.H.
- Length(L*B*H*) – 231*30*20.6mm
- Application – Profile Light, Strip Light, Rope Light, Hanging Light.
