Water Proof Isolated Drivers
Driver Components Powered By
36W EE22 Waterproof Isolated Driver
Driver Details:
- Wattage – 36W EE22 (P6472)
- Input Voltage – 85V - 265V AC 50-60Hz
- Output Voltage – 24V - 38V
- Output Current – 900mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 6KV Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 64*24*18mm
- Application – Indoor / Outdoor LED Lighting
Download Catalouge

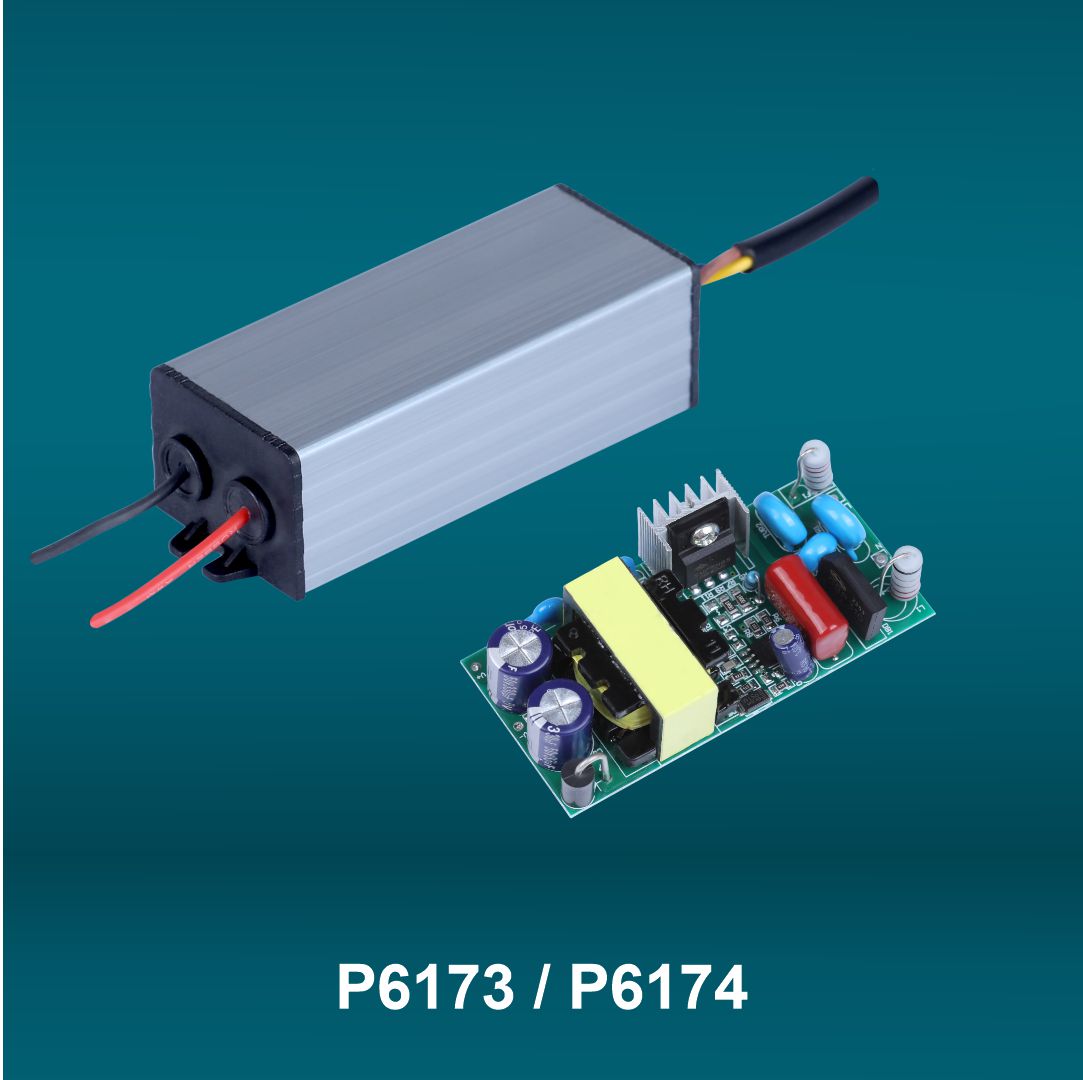

50W EE28 Waterproof Isolated Driver
Driver Details:
- Wattage – 50W EE28 (P6173 /P6174)
- Input Voltage – 100V - 320V AC 50-60Hz
- Output Voltage – 28V - 35V / 48V - 66V
- Output Current – 1500mA / 750mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 6KV Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 70*33*22mm / 81*37*27mm
- Application – Indoor / Outdoor LED Lighting
Download Catalouge

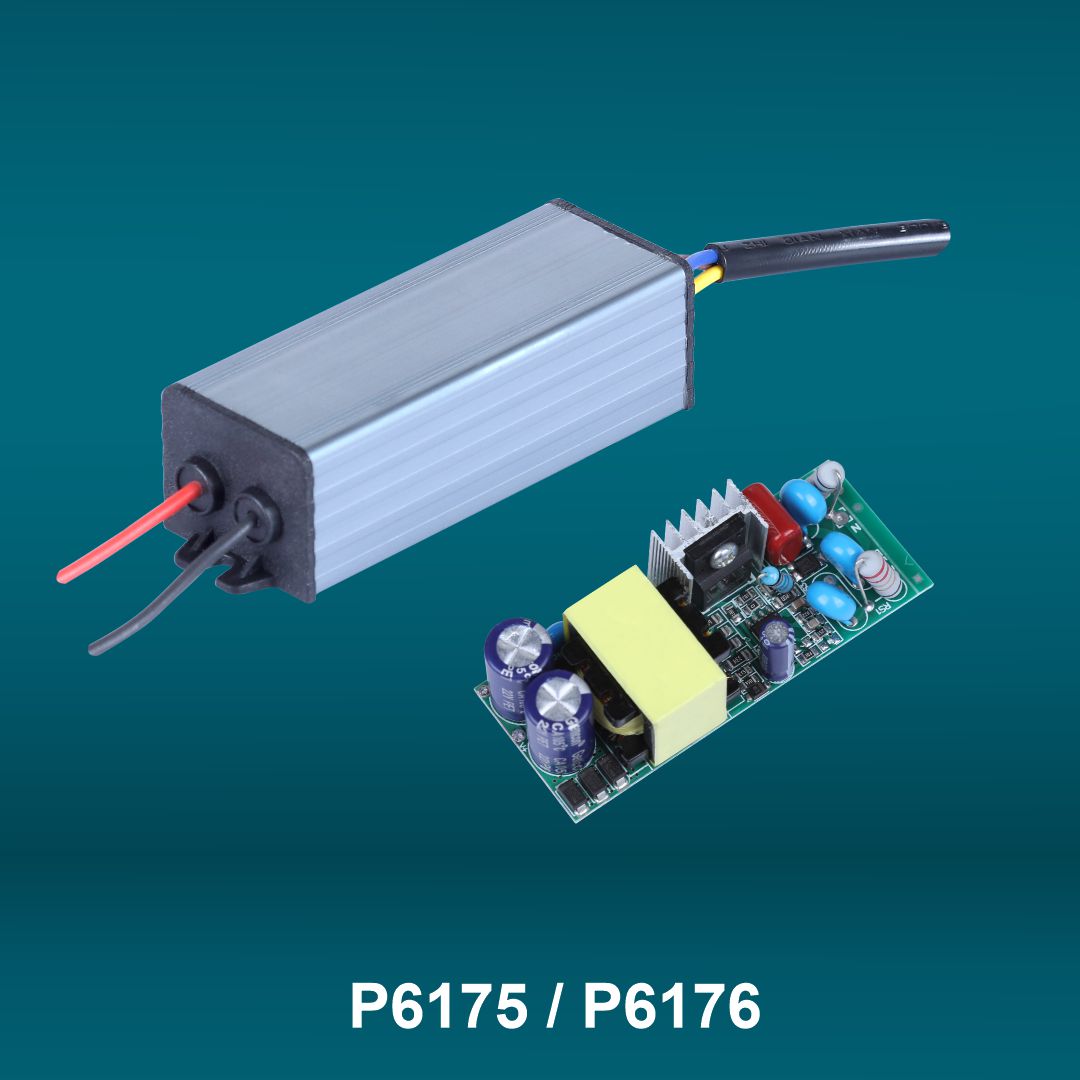

50W EE22 Waterproof Isolated Driver
Driver Details:
- Wattage – 50W EE22 (P6175 / P6176)
- Input Voltage – 100V - 320V AC 50-60Hz
- Output Voltage – 28V - 35V / 48V - 66V
- Output Current – 1500mA / 750mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 6V Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 64*27*18mm / 78*36*24mm
- Application – Indoor / Outdoor LED Lighting
Download Catalouge
60W EE28 Waterproof Isolated Driver
Driver Details:
- Wattage – 60W EE28 (P6475)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 48V - 78V
- Output Current – 700mA
- Efficiency ≥ 90%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 6V Features : Short Circuit Protection, Over Voltage Protection,Over Load Protection, Under Voltage Protection, Over Temperature Protection. >
- Length(L*B*H*) – 71.8*33.7*23.2mm
- Application – Street Light, Flood Light, Facade Light, Track Light, High Bay Light, Industrial Lighting.
Download Catalouge
75W PQ2620 Waterproof Isolated Driver
Driver Details:
- Wattage – 75W PQ2620 (P6476)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 87V - 108V
- Output Current – 700mA
- Efficiency ≥ 90%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 6V Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 64*27*18mm / 78*36*24mm
- Application – Street Light, Flood Light, Facade Light, Track Light, High Bay Light, Industrial Lighting.
Download Catalouge
100W PQ3220 Waterproof Isolated Driver
Driver Details:
- Wattage – 100W PQ3220 (P6477 / P6478)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 108V - 135V / 54V - 60V
- Output Current – 700mA / 1500mA
- Efficiency ≥ 90%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 6V Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 177.80*44*23.60mm
- Application – Street Light, Flood Light, Facade Light, Track Light, High Bay Light, Industrial Lighting.
Download Catalouge

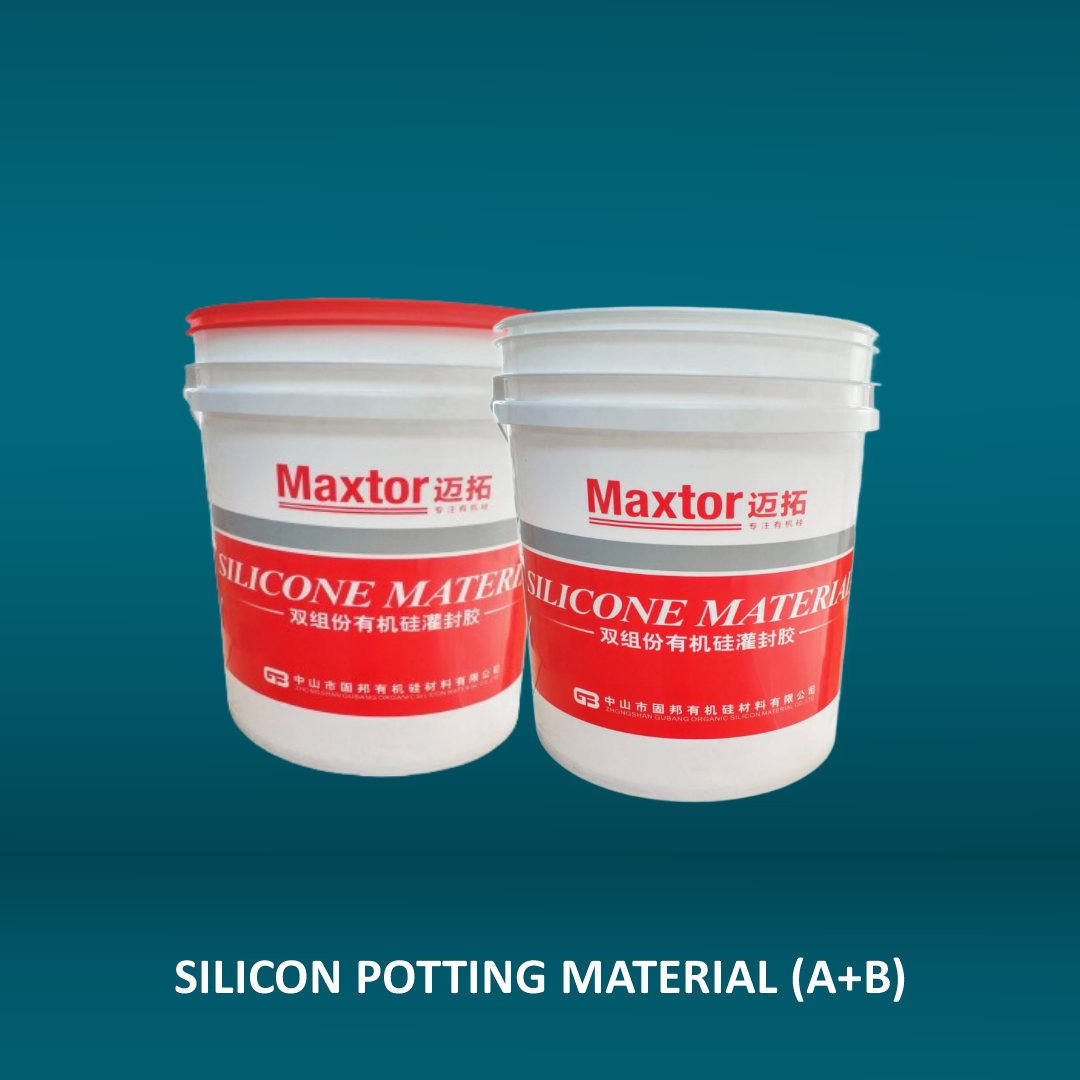

Silicon Potting Material
Product Description：
- Two Component silicone addition type potting compound.
- Low Viscosity, good fluidity, easy to operate.
- Glue can store a long time after mixing at room temperature,It can be cured quickly under heating condition, especially for automatic production line.
- Good temperature resistance, it can maintain rubber elasticity in a wide temperature range (-50～200℃）after cured.
- Good termal conductivity, excellent insulation performance.
- The curing process does not shrink, has better waterproof and moisture resistance and anti-aging performance.
- Comply with EU ROHS directive requirements.
Download Catalouge
